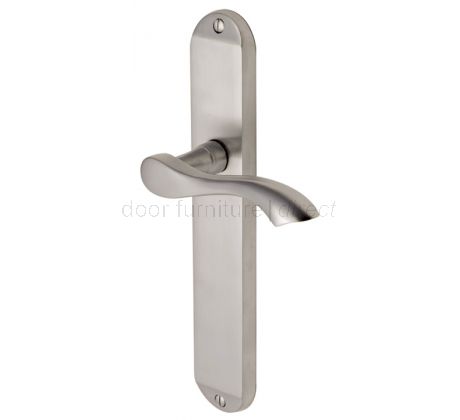

Algarve Long Shaped Lever Satin Nickel Latch Door Handles

£53.33 £44.44 Pair
SKU
I458754

Algarve Long satin nickel shaped lever latch handle on a radiused backplate. Used on doors that have a mortice latch and are NOT required to lock with a key. Should be fitted in conjunction with a York tubular latch, see related items below. The backplate measures 242x43mm and this set is supplied complete with connecting spindle and fixing screws. A long back plate is really useful for concealing screw holes where shorter plate handles have previously been fitted.

Lever latch handles have a plain back plate. They are used in conjunction with either a mortice or tubular latch, which are normally 2.1/2in (64mm) or 3in (75mm) long, although longer sizes can be obtained if the handles need to be placed further in from the door edge. The latch is fitted into the edge of the door whereas the handles are fitted to either side of the door and are connected by a spindle located in the back of the levers. When the levers are pressed, the spindle rotates and operates the latch allowing the door to open. The handles are supplied complete with the spindle and fixing screws, but not with the latch, which needs to be purchased as a separate item, and is normally specified to have a matching finish to the handles.

More Information
Price Unitpair
ModelMM7210SC
SKUI458754
DimensionsOverall Back Plate Dimensions 242x43mm
Lever Length 118mm
Overall Projection 62mm
Back Plate Thickness 11mm
Approximate dimensions subject to change by the manufacturer, please contact us if this information is critical.
ManufacturerM.Marcus
