Satin Chrome Rim Knob Furniture with One Rose

£21.29 £17.74 Set
SKU
I443216

Satin chrome rim knob furniture to be used in conjunction with a rim lock or rim latch, usually in a satin chrome finish to match. These knobs are supplied with only one rose as the knob on one side fits directly up against the rim lock already fitted to the face of the door. Knob diameter is approximately 47mm and the rose diameter measures 54mm.

Rim furniture is used in conjunction with a rim lock or latch that is fitted to the outside face of the door as opposed to a mortice lock, which is fitted into the door edge. Rim furniture consists of two knobs, (one with a fixed rose and one without a rose), a spindle and screws. Sometimes a single escutcheon is also supplied. The knob with the fixed rose is fitted to the opposite side of the door to the lock and is fixed to the door in the normal way usually using screws located through the holes in the rose. The spindle located in the back of the fixed rose knob, passes through the door and the rim lock. The second knob is then fixed usually by means of a small grub screw that passes through the neck of the knob, onto the spindle. The second knob does not need a rose as the neck of the knob fits tight against the actual rim lock. Where the rim lock uses a key, an escutcheon is fitted on the opposite door face to the rim lock. Rim furniture is normally specified to have a matching finish to the rim lock or latch.

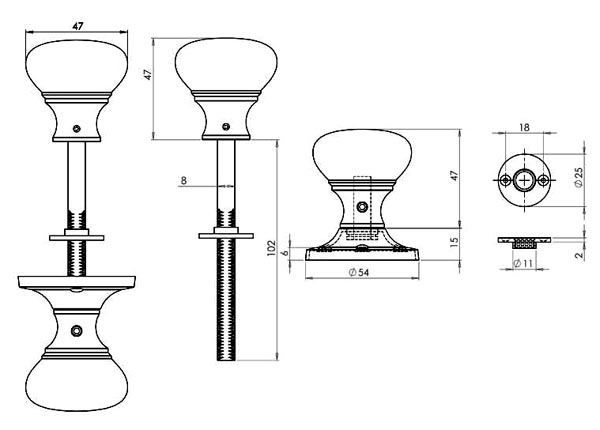

Dimensions Diagram

More Information
Price UnitSet
ModelJV177SC
SKUI443216
DimensionsKnob Diameter 47mm
Rose Diameter 54mm
Overall Projection 62mm
ManufacturerJedo
