Windsor Straight Lever Polished Chrome Oval Cylinder Door Handles

£25.92 £21.60 Pair
SKU
I435488

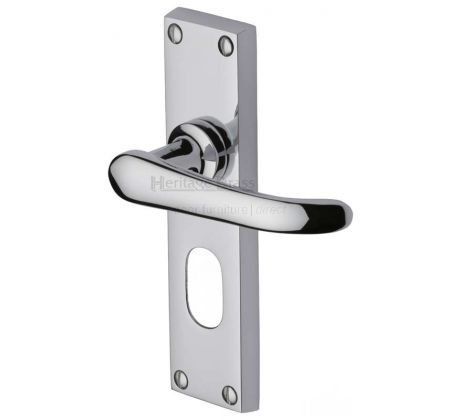

Windsor polished chrome straight lever handle on a plain oval cylinder backplate. Used on doors that have a mortice door lock operated by an oval profile cylinder. The backplate measures 154x40mm and this set is supplied complete with connecting spindle and fixing screws. The centres measurement (the distance between the centre of the spindle to the centre of the key barrel) is 48mm. See diagram below.

Oval profile handles have an oval shape cut out of the back plate. This oval cut out in the back plate is used to house a key operated cylinder. The cylinder is used with a sash lock, which consists of a latch and a deadbolt and is mortised into the edge of the door. The lock also has an oval shape cut into it to allow the cylinder to pass through and come out on the opposite side of the door. These cylinders come in various lengths depending on the thickness of the door and various styles such as double key, key and turn, or single cylinder. The handles are fitted to either side of the door and are connected by a spindle located in the back of the levers. When the levers are pressed, the spindle rotates and operates the latch allowing the door to open. When the key or thumb turn is operated, the deadbolt on the lock is thrown and the door is then locked. The handles are supplied complete with the spindle and fixing screws, but not with the lock or cylinder, which need to be purchased separately, and are normally specified to have a matching finish to the handles.

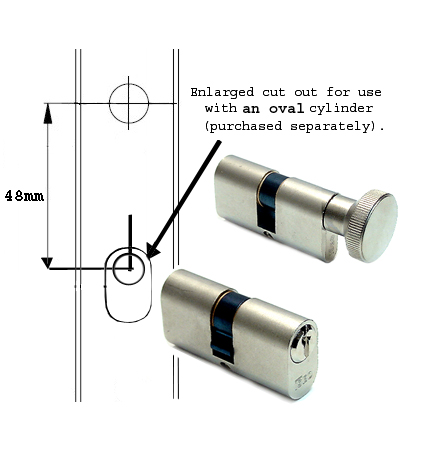

Dimensions Diagram

More Information
Price Unit pair
Model V725PC
SKU I435488
Dimensions Overall Back Plate Dimensions 154x40mm
Lever Length 102mm
Overall Projection 54mm
Back Plate Thickness 10mm
Approximate dimensions subject to change by the manufacturer, please contact us if this information is critical.
Manufacturer M.Marcus
