78mm Mortice Deadbolt Stainless Steel

£6.10 £5.08 Each
SKU
I432765
This is a mortice deadbolt, to be used in conjunction with standard 8mm spindle furniture. It measures 78mm (3in) from the face plate to the back of the deadbolt and the backset from face plate to centre of spindle is 57mm (2.1/4in). Supplied complete with satin stainless steel face plate and receiver.

To be used where you want a deadlock action with the lock operated by an unsprung handle or thumbturn using a standard 7.6mm or 8mm spindle rather than a key.

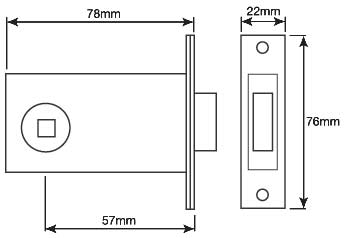

Dimensions DiagramBackset Diagram

More Information
Price Unit each
Model JL192SSS
SKU I432765
Dimensions No
Manufacturer Door Furniture Direct
