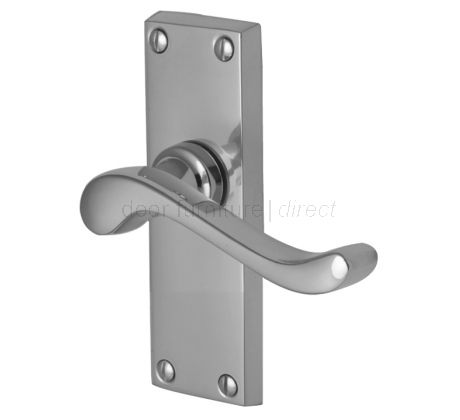

Bedford Scroll Lever Polished Chrome Short Plate Latch Door Handles
Lever latch handles have a plain back plate. They are used in conjunction with either a mortice or tubular latch, which are normally 2.1/2in (64mm) or 3in (75mm) long, although longer sizes can be obtained if the handles need to be placed further in from the door edge. The latch is fitted into the edge of the door whereas the handles are fitted to either side of the door and are connected by a spindle located in the back of the levers. When the levers are pressed, the spindle rotates and operates the latch allowing the door to open. The handles are supplied complete with the spindle and fixing screws, but not with the latch, which needs to be purchased as a separate item, and is normally specified to have a matching finish to the handles.
Recommended latches shown are suitable for typical domestic use. Please refer to our mortice latch category for alternative heavier duty latches as used on commercial applications, or where a heavy duty product is required. A 2.5in (64mm) latch is normally recommended for lever handles.
|Dimensions||Overall Back Plate Dimensions 119x40mm
Lever Length 100mm
Overall Projection 55mm
Back Plate Thickness 10mm
Approximate dimensions subject to change by the manufacturer, please contact us if this information is critical.
