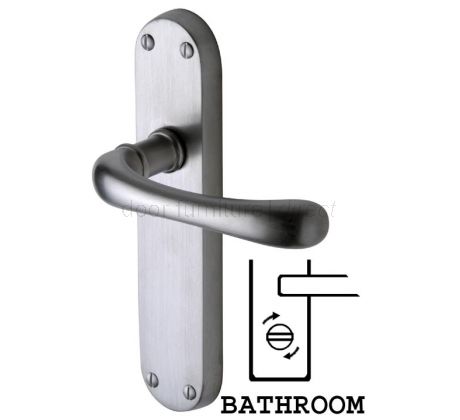

Donna Satin Chrome Straight Lever Bathroom Door Handles
£25.97 £21.64 Pair
Donna satin chrome shaped lever handle on a radiused bathroom backplate. Part of our Sorrento range which is suitable for use on both half and one hour fire doors. Used on doors that have a mortice bathroom lock which is operated by rotating the turn button or coin release on the handles located on either face of the door. The backplate measures 183x42mm and this set is supplied complete with connecting spindles and fixing screws.
Bathroom locking handles are used in conjunction with a bathroom mortice lock, which is usually 2.1/2in (64mm) or 3in (75mm) wide and consists of a latch and a deadbolt. On the handle fitted to the inside face of the door there is a button which when turned, operates the deadbolt on the bathroom mortice lock. On the handle fitted to the outside face of the door there is an emergency release slot, usually operated by a coin or screwdriver, which can be used to unlock the door in an emergency. The turn button and the emergency release are connected by use of a smaller 5mm spindle, which passes through the bathroom lock. The handles are supplied complete with both required spindles and fixing screws, but not with the bathroom lock, which needs to be purchased as a separate item, and is normally specified to have a matching finish to the handles.
|Dimensions||Overall Back Plate Dimensions 183x42mm|
Lever Length 117mm
Overall Projection 70mm
Back Plate Thickness 11mm
Approximate dimensions subject to change by the manufacturer, please contact us if this information is critical.
