Edwardian Scroll Lever Dual Finish Nickel Latch Door Handles

£30.90 £25.75 Pair
SKU
I458502

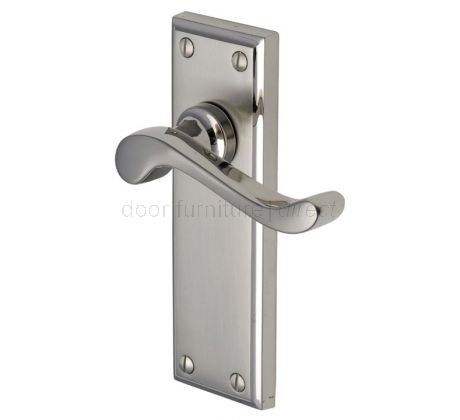

Edwardian split finish satin and polished nickel scroll lever latch handle on a stepped edge backplate. Used on doors that have a mortice latch and are NOT required to lock with a key. The backplate measures 153x49mm and this set is supplied complete with connecting spindle and fixing screws.
Lever latch handles have a plain back plate. They are used in conjunction with either a mortice or tubular latch, which are normally 2.1/2in (64mm) or 3in (75mm) long, although longer sizes can be obtained if the handles need to be placed further in from the door edge. The latch is fitted into the edge of the door whereas the handles are fitted to either side of the door and are connected by a spindle located in the back of the levers. When the levers are pressed, the spindle rotates and operates the latch allowing the door to open. The handles are supplied complete with the spindle and fixing screws, but not with the latch, which needs to be purchased as a separate item, and is normally specified to have a matching finish to the handles.
More Information
Price Unit pair
Model W3213MC
SKU I458502
Dimensions Overall Back Plate Dimensions 153x49mm
Lever Length 109mm
Overall Projection 50mm
Back Plate Thickness 10mm
Approximate dimensions subject to change by the manufacturer, please contact us if this information is critical.
Manufacturer M.Marcus
