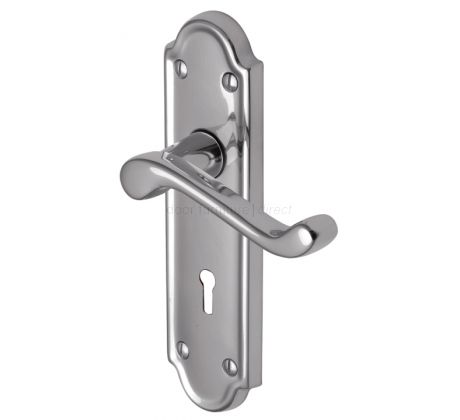

Meridian Scroll Lever Polished Chrome Keyhole Door Handles
Meridian polished chrome scroll lever handle on a shaped keyhole backplate. Used on doors that have a mortice door lock operated with a key. The backplate measures 170x47mm and this set is supplied complete with connecting spindle and fixing screws. This traditional design door handle is functional and features an easy grip lever for opening and closing the door. Should be fitted in conjunction with a York mortice sashlock, see related items below.
Lever lock handles have a keyhole cut into the back plate. They are used in conjunction with a mortice sash lock, which is usually 2.1/2in (64mm) or 3in (75mm) wide and consists of a latch and a deadbolt. The sash lock is fitted into the edge of the door whereas the handles are fitted to either side of the door and are connected by a spindle located in the back of the levers. When the levers are pressed, the spindle rotates and operates the latch in the sash lock allowing the door to open. When the key is turned the deadbolt is operated, locking the door. The handles are supplied complete with the spindle and fixing screws, but not with the lock which needs to be purchased as a separate item, and is normally specified to have a matching finish to the handles.
|Dimensions||Overall Back Plate Dimensions 170x47mm|
Lever Length 98mm
Overall Projection 51mm
Back Plate Thickness 11mm
Approximate dimensions subject to change by the manufacturer, please contact us if this information is critical.
