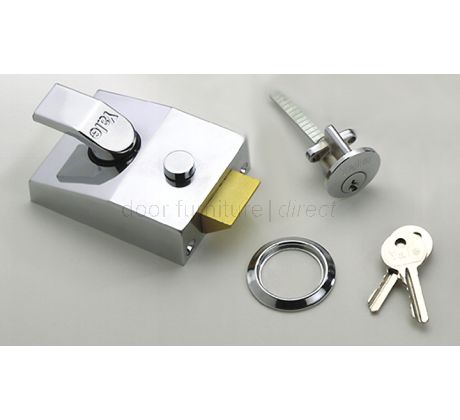

Narrow Style Double Lock Yale Nightlatch 85 Chrome

£31.31 £26.09 Each
SKU
S001975
Chrome double locking narrow style nightlatch, supplied complete with a cylinder and two keys. Suitable for door thickness from 32-57mm. Manual deadlocking by reverse turn of the key in outside cylinder. Key operation from outside, lever handle operation from inside. This lock is designed to fit all solid and glass panelled wooden doors where there is a restricted width to mount the lock.

The centre of the keyhole must be 40mm from the edge of the door, and the overall length of the lock body to be fitted to the inside of the door is 62mm. This lock should preferably be used in conjunction with a British Standard mortice lock (BS3621).

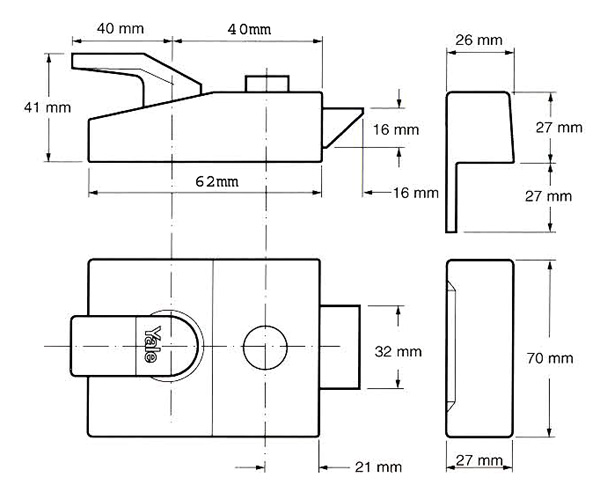

Dimensions Diagram

More Information
Price Uniteach
ModelP-85-CH-CH-40
SKUS001975
ManufacturerYale
