Silver Double Action Spring Hinges In Pairs
  • Silver Double Action Spring Hinges In Pairs
  • Silver Double Action Spring Hinges In Pairs
Silver Double Action Spring Hinges In Pairs

Silver Double Action Spring Hinges In Pairs

£27.86
(exc. VAT): £23.22
SKU: I363100
Pair

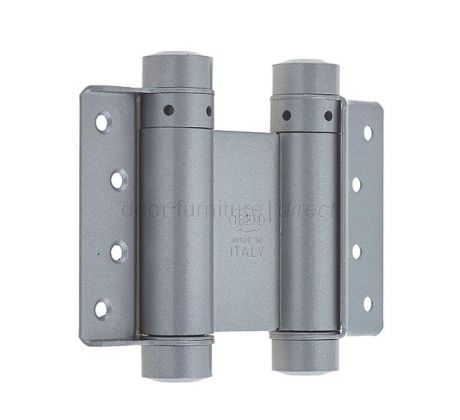

Silver sprayed double action spring hinges sold in pairs. Supplied complete with fitting instructions, tension adjusting bar and pins. Screws are not supplied with this item and need to be purchased separately. Technical data for each hinge size shown in extra images.

Please select size required in options above.

Competitive pricing

Fast and reliable shipping

Flexible returns
Product Details

Double action spring hinges are for use in a situation where the door is required to swing in either direction. Please note that where the corners of the door meet with the corners of the hanging strip, they should be chamfered to allow the door to swing through smoothly.
Click here to view fitting instructions

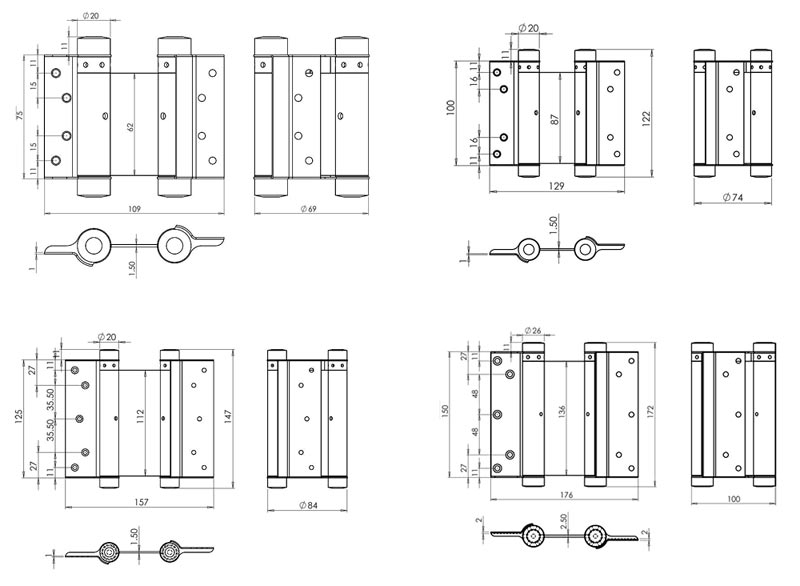

Technical Data for double action spring hinges:
75mm: Max Door Weight (2 hinges) 15kg Max Door Width 600mm Door Thickness 18-25mm
100mm: Max Door Weight (2 hinges) 22kg Max Door Width 700mm Door Thickness 25-30mm
125mm: Max Door Weight (2 hinges) 27kg Max Door Width 700mm Door Thickness 30-35mm
150mm: Max Door Weight (2 hinges) 40kg Max Door Width 750mm Door Thickness 40-45mm
More Information

SKU: I363100-400
Price Unit: Pair
