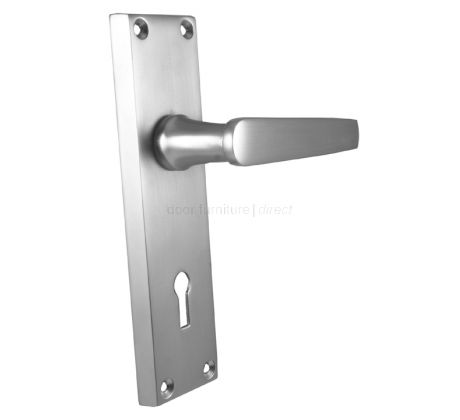

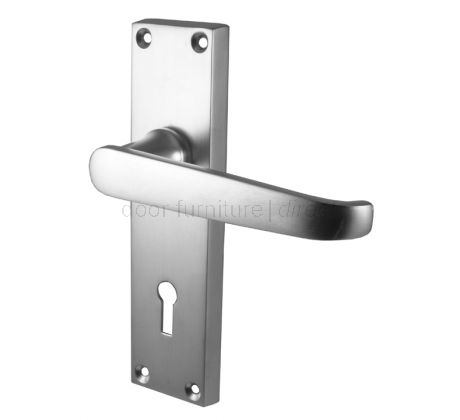

Satin Chrome Lever Lock Door Handles

£10.97 £9.14 Pair
SKU
I443225
Satin chrome lever lock handles, dimensions of plate are 153x41mm. This set includes spindle and screws.
Lever lock handles have a keyhole cut into the back plate. They are used in conjunction with a mortice sash lock, which is usually 2.1/2in (64mm) or 3in (75mm) wide and consists of a latch and a deadbolt. The sash lock is fitted into the edge of the door whereas the handles are fitted to either side of the door and are connected by a spindle located in the back of the levers. When the levers are pressed, the spindle rotates and operates the latch in the sash lock allowing the door to open. When the key is turned the deadbolt is operated, locking the door. The handles are supplied complete with the spindle and fixing screws, but not with the lock which needs to be purchased as a separate item, and is normally specified to have a matching finish to the handles.
More Information
Price Unit pair
Model JV30SC
SKU I443225
Dimensions Overall Back Plate Dimensions 153x41mm
Lever Length 103mm
Back Plate Thickness 10mm
Approximate dimensions subject to change by the manufacturer, please contact us if this information is critical.
Manufacturer Door Furniture Direct
