DIN Escape Lock Stainless Steel

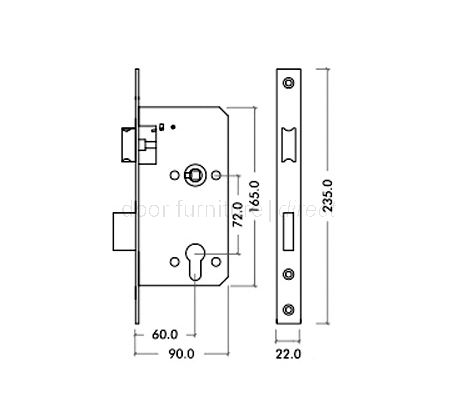

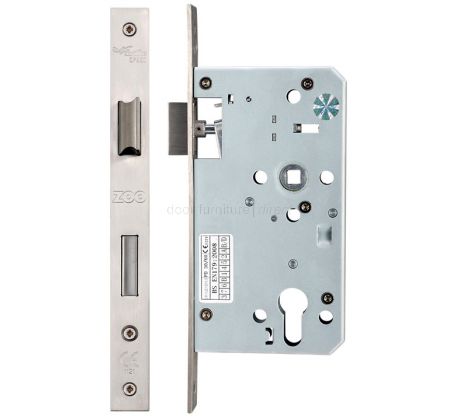

DIN escape lock supplied complete with stainless steel face plate and receiver. Lock centres measure 72mm and backset is 60mm. Features a Grade 304 stainless steel latch and deadbolt, an anti rattle strike and a grip tight follower. Used in conjunction with a euro profile cylinder. When the euro cylinder has been locked and the deadbolt has been thrown, operating the lever handle from the inside of the door releases the deadbolt freeing the door to open. Ideal for use in hotel rooms. Please note the lever handles and euro cylinder are not supplied with this item and need to be purchased separately. The related lever handles are shown below. Tested to BS EN 12209 Grade 3 and suitable for use on 30 and 60 minute timber fire doors.

BS EN 12209: 3| 7| 6| B| 1| 4| 5| 2| A| B/D Click for details
