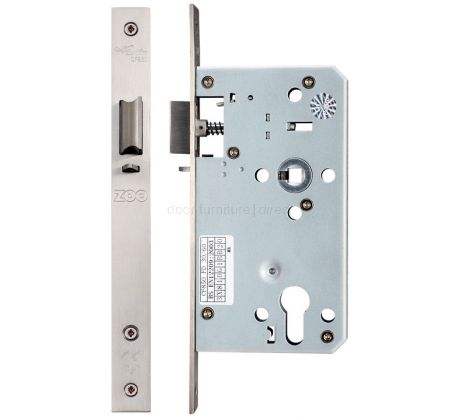

DIN Mortice Nightlatch Case Stainless Steel

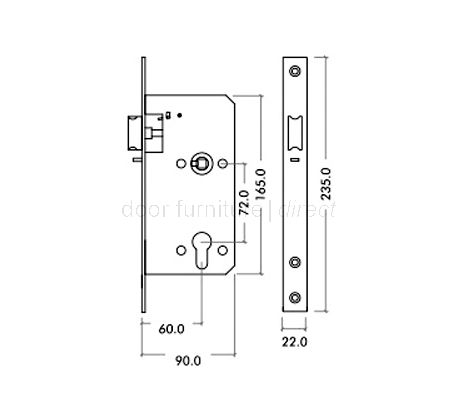

DIN euro profile mortice nightlatch case supplied complete with stainless steel face plate and receiver. To be used in conjunction with a euro profile cylinder (not included). The latchbolt is withdrawn by cylinder from outside and by sprung lever handle or separate turn snib from inside. Lock centres are 72mm and backset measurement is 60mm. Tested to BS EN 12209 Grade 3 and suitable for use on 30 and 60 minute fire doors. Features a Grade 304 stainless steel latch and anti thrust pin.

BS EN 12209: 3| X| 8| 1| 0| G| 2| B| B| 2| 0 (click for details)
