Door Limiting and Friction Stay Silver

Door Limiting and Friction Stay Silver

£24.88
(exc. VAT): £20.73
SKU: I475410
Each

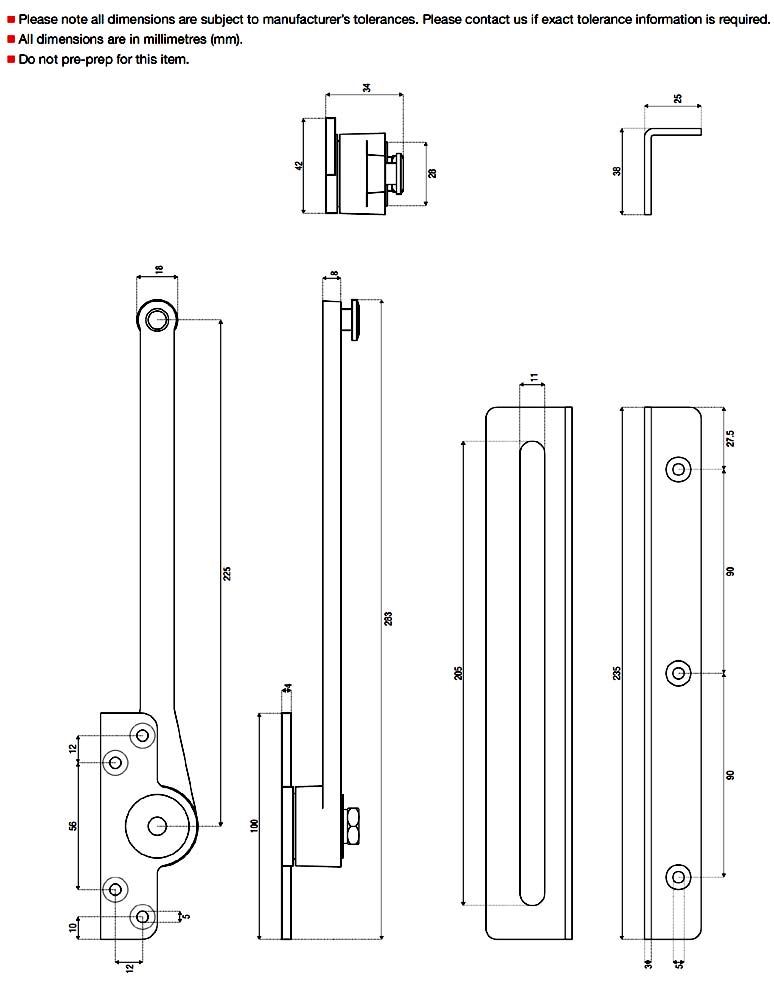

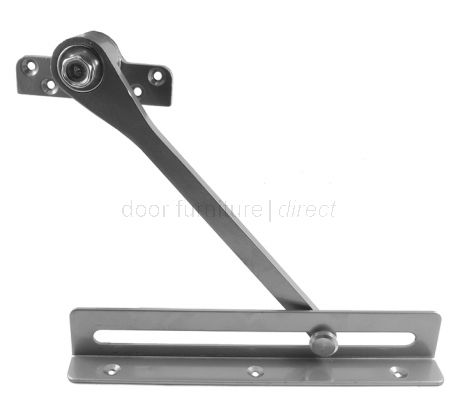

Heavy friction stay epoxy powder coated silver (grey in colour). Measures 9in (229mm) from centre to centre of arm. Suitable for medium doors. This stay is zinc plated prior to painting which affords some protection against rusting.

Competitive pricing

Fast and reliable shipping

Flexible returns
Product Details

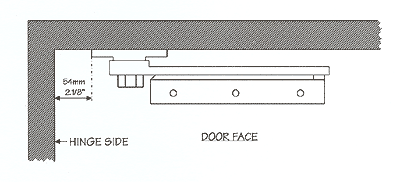

The friction box is fitted to the underside of the door frame. The short side of the box plate 54mm from the vertical frame on the hinged side of the door. The long side of the box plate is positioned to be just clear of the face of the door when closed. For maximum movement the angle plate is fitted to the door towards the hinge side. For restricted movement the angle plate is fitted away from the hinge side to the required position. Friction is adjusted by means of the nut and spring washer.
More Information

SKU: I475410
Price Unit: Each
Manufacturer: Zero
