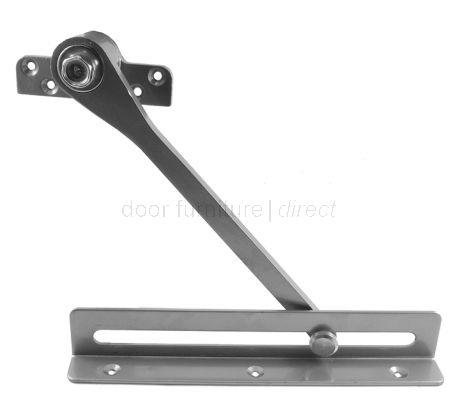

Door Limiting and Friction Stay Stainless Steel

Heavy friction stay stainless steel for complete protection in high corrosion environments i.e. coastal areas, marine applications, food industry etc. Fitted to control the speed of opening and closing a door, it should not be used as a door stop or a door holder. Measures 9in (229mm) from centre to centre of arm. Fitting the stay with 65mm spacing from the hinge axis will give an opening angle of approximately 90 degrees. You can decrease this spacing to give greater angles of 95-100 degrees or increase to restrict the door opening to approximately 80-85 degrees. Friction is achieved by adjusting the hexagonal bolt accordingly.
