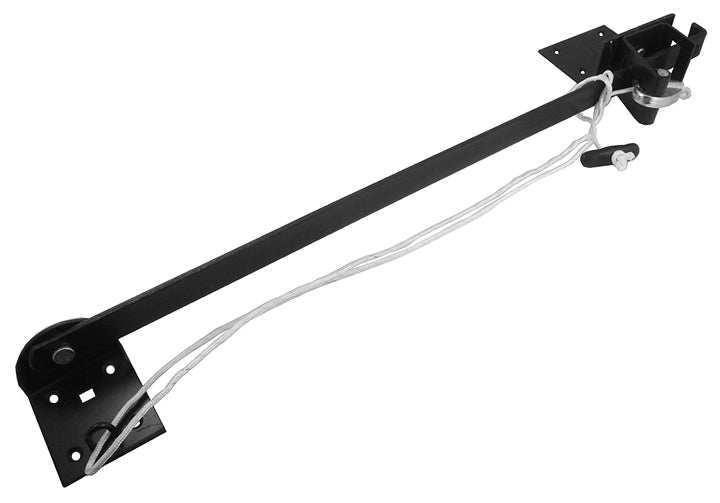

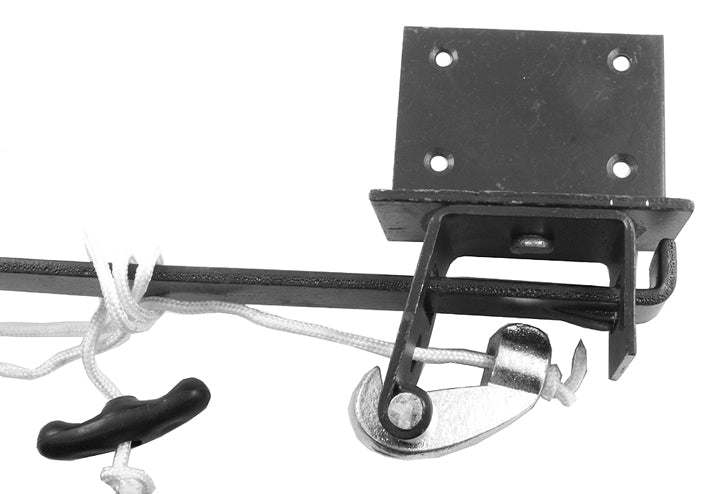

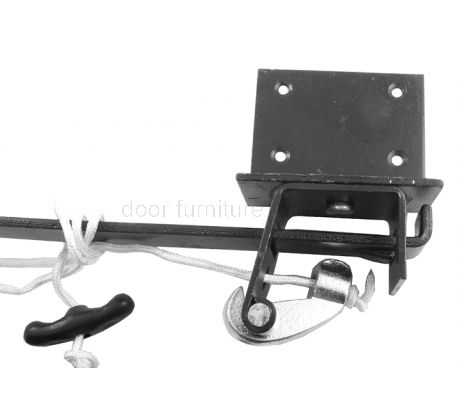

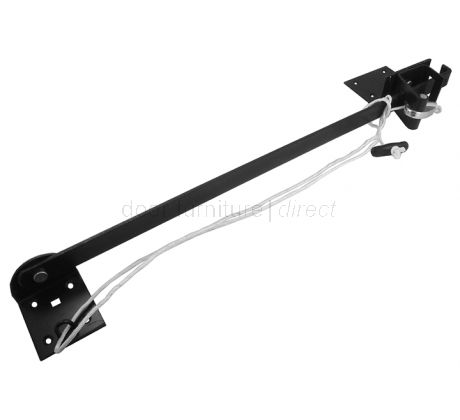

Garage Door Holder 1011 in Pairs (Narrow Lintel)

To fit this unit the door is first opened to right angles.
A bracket is fitted to the lintel at a distance of 430mm(17in) from the centre of the door hinge pin to the centre of the lintel bracket.
Lintels with a width of approximately 95mm or more can use the wide lintel version (bracket will mount on the bottom instead of the side in the wide version).
Whilst the door is open at right angles the other bracket is fitted to the door with the bar horizontal.
It is possible to open the door wider than 90 degrees by moving both brackets nearer the hinge.
