Mortice Pattern Door Limiting Stay

£11.72 £9.77 Each
SKU
I475488
Electro-zinc plated door limiting stay which limits the angle of opening on a door to 90 degrees. The channel is morticed into the top of the door and the head plate fits under the soffit. Suitable for use on right and left hand doors as well as double action doors. There is a leaf spring at one end of the channel and by fitting the leaf spring nearest the door jamb, the stay can be used to hold the door open. Alternatively by fitting the blank end nearest the door jamb it becomes a non hold open stay. The minimum door width for doors fitted with butt hinges is 610mm.

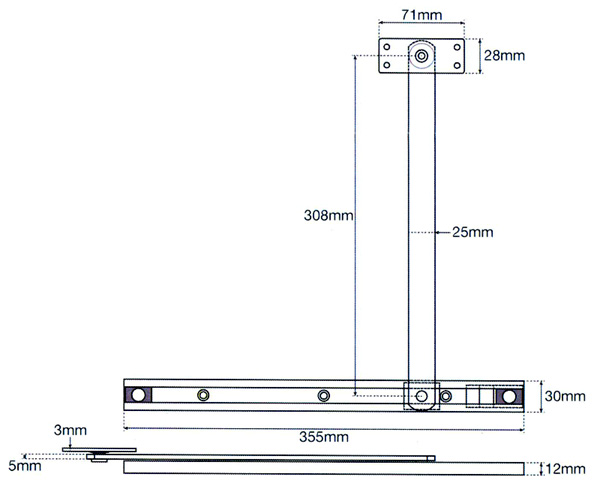

Dimensions Diagram

More Information
Price UnitEach
ModelZ102-Z
SKUI475488
ManufacturerZero
