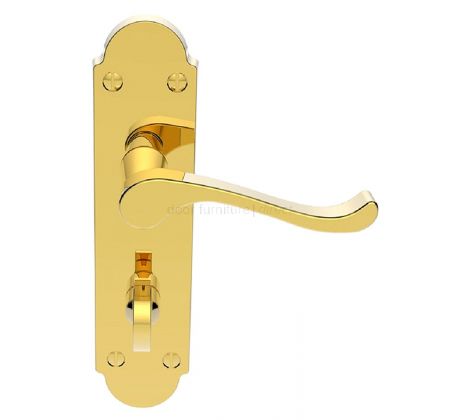

PVD None Tarnish Brass Oakley Bathroom Door Handles

£42.76 £35.63 Pair
SKU
I478920
PVD none tarnishing brass Oakley scroll bathroom handle on a shaped keyhole backplate. Used on doors that have a mortice bathroom lock which is operated by rotating the turn button or coin release on the handles located on either face of the door. The backplate measures 170x42mm and this set is supplied complete with connecting spindle and fixing screws.

Bathroom locking handles are used with a bathroom mortice lock, which is usually 2.1/2in (64mm) or 3in (75mm) wide and consists of a latch and a deadbolt. The bathroom lock is mortised into the edge of the door whereas the handles are fitted to either side of the door and are connected by a spindle located in the back of the levers. When the levers are pressed, the spindle rotates and operates the latch allowing the door to open. On the handle fitted to the inside of the door there is a button which when turned, operates the deadbolt on the bathroom mortice lock. On the handle fitted to the outside of the door there is an emergency release slot, usually operated by a coin or screwdriver, which can be used to unlock the door in an emergency. The turn button and the emergency release are connected by use of a smaller spindle, which passes through the bathroom lock. The handles are supplied complete with both spindles and fixing screws, but not with the lock, which needs to be purchased as a separate item, and is normally specified to have a matching finish to the handles.

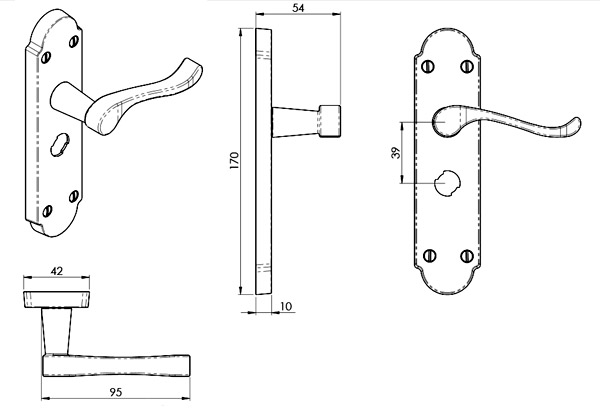

Dimensions Diagram

More Information
Price Unitpair
ModelDL168WCPVD
SKUI478920
DimensionsOverall Back Plate Dimensions 170x42mm
Lever Length 95mm
Overall Projection 54mm
Back Plate Thickness 10mm
Approximate dimensions subject to change by the manufacturer, please contact us if this information is critical.
ManufacturerCarlisle Brass
