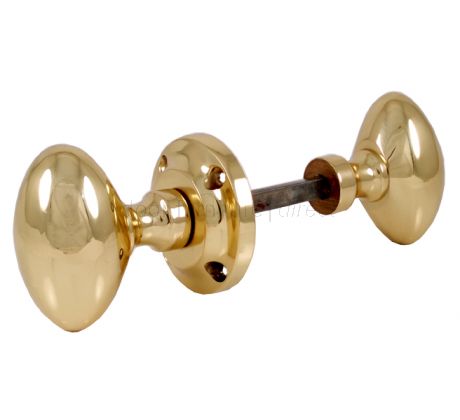

Suffolk Polished Brass Rim Lock Oval Door Knob Set
£20.34 £16.95 Set
Suffolk polished brass oval rim lock door knobs to be used in conjunction with a rim lock. The oval knob measures 62x35mm and the round rose which is fitted to the opposite face of the door to the lock has a 57mm diameter. This set is supplied complete with threaded spindle and fixing screws.
Rim furniture is used in conjunction with a rim lock or latch that is fitted to the outside face of the door as opposed to a mortice lock, which is fitted into the door edge. Rim furniture consists of two knobs, (one with a fixed rose and one without a rose), a spindle and screws. Sometimes a single escutcheon is also supplied. The knob with the fixed rose is fitted to the opposite side of the door to the lock and is fixed to the door in the normal way usually using screws located through the holes in the rose. The spindle located in the back of the fixed rose knob, passes through the door and the rim lock. The second knob is then fixed usually by means of a small grub screw that passes through the neck of the knob, onto the spindle. The second knob does not need a rose as the neck of the knob fits tight against the actual rim lock. Where the rim lock uses a key, an escutcheon is fitted on the opposite door face to the rim lock. Rim furniture is normally specified to have a matching finish to the rim lock or latch.
|Dimensions||Knob Size 62x35mm
Rose Diameter 57mm
Overall Projection 73mm
Approximate dimensions subject to change by the manufacturer, please contact us if this information is critical.
